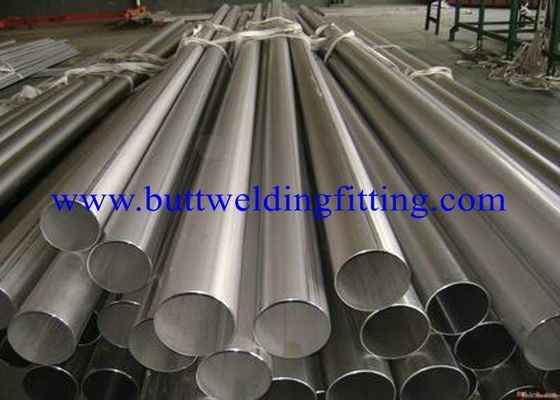

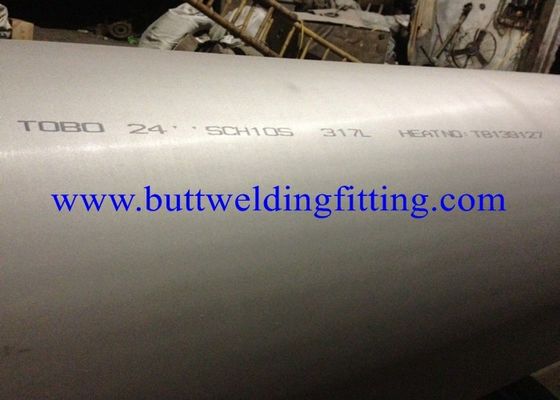

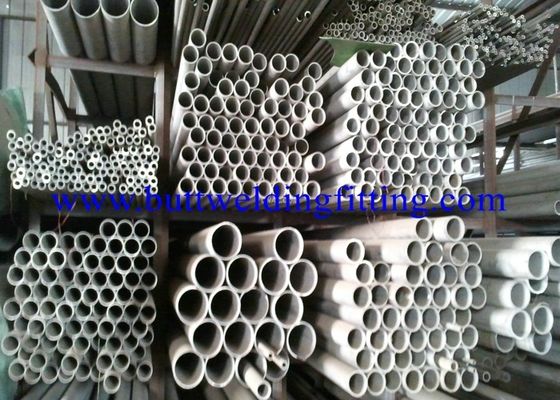

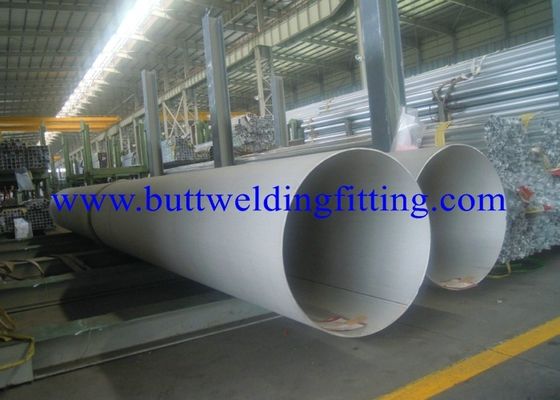

Dikişsiz Dubleks Paslanmaz Çelik Boru

Menşe yeri	Çin / Japonya / Almanya
Marka adı	TOBO/TPCO/TISCO/VALIN/METAL
Sertifika	ISO/PED/TUV/SGS/LR/BV
Model numarası	TOBO Hastelloy C-4 (UNS No. N06455), C-276 (UNS No. N10276), Hastelloy C 22 (UNS No. N06022), Hastel
Min sipariş miktarı	1m
Fiyat	USD
Ambalaj bilgileri	Ply-Woodcase
Teslim süresi	5-65workdays
Ödeme koşulları	T / T, L / C, Western Union,
Yetenek temini	30000ton / Yıl

Ürün ayrıntıları

Standart	ASTM / ASME A789 / SA789, A790 / SA790, A450, A530 sayılı Uluslararası patent başvurusu	Bitiş	Bu borular düz sonu vardır, eğimli sonunda, dişli ve şekil beğenmek sıcak daldırma galvaniz, epoksi
Renk	Siyah veya Kırmızı	ASTM	B622, B619, B622, B626
uzunluğu	Tek Rastgele, Çift Rastgele & Boy Kesme	Sınıf	UNS S32750 2507
Türleri	Kesintisiz	Biçim	Yuvarlak, kare, dikdörtgen, hidrolik vb
Vurgulamak	Dubleks ss boru , ince duvarlı paslanmaz çelik boru

Mesaj bırakın

Ürün Açıklaması

Süper Dubleks Dikişsiz Boru, Süper Dubleks Tüp ASTM A790 / 790M UNS S32750 (1.4410) ASTM A789 / 789M 2507 TÜV CE

Standart:	ASTM / ASME A789 / SA789, A790 / SA790, A450, A530 sayılı Uluslararası patent başvurusu	Uzunluk:	Tek rastgele, çift rastgele ve kesim uzunluğu
Son:	Bu Borular Düz Uçlu, Eğimli Uçlu, Dişli ve Sıcak Daldırma Galvaniz, Epoksi ve Fbe Kaplama ve Elektro Cilası	Sınıf:	UNS S32750 2507
Renk:	Siyah veya kırmızı	Türleri:	sorunsuz
ASTM:	B622, B619, B622, B626	Form:	Yuvarlak, Kare, Dikdörtgen, Hidrolik Vb

Hastelloy C276 dikişsiz boru, ASTM B622, ASTM B619, ASTM B775, ASTM B516, ASTM B626, ISO 6207, DIN 17751, TÜV CE

Uns s32750 süper çift yönlü paslanmaz çelik BORU
1Branch: TOBO
2 ömür boyu kalite güvencesi
3Thickness: 0.5-30mm
4Stock: 950 ton

TOBO uns s32750 süper çift yönlü paslanmaz çelik

TOBO uns s32750 süper dubleks paslanmaz çelik boru ve ek parçalarının kısa bir açıklaması

1Çin en büyük paslanmaz çelik tesisi
2 ömür boyu kalite güvencesi
3 yıllık kapasite: 100 milyon
4stock

5 kalınlık: 0.2-20mm

6width: 200-2000mm

Hastelloy C276 dikişsiz boru, ASTM B622, ASTM B619, ASTM B775, ASTM B516, ASTM B626, ISO 6207, DIN 17751, TÜV CE

Ürün: Alın Kaynaklı Montaj
Malzeme:	SA234, SA403
Sınıf:	Malzemeler: • Karbon çeliği: ASTM A234, WPB, WPC, ASTM A420 WPL1, WPL3, WPL6, WPHY-42/46/52/56/60/65/70 Paslanmaz çelik: ASTM A403 WP304 / 304L, WP316 / 316 / L, WP321, WP347 ve WPS31254 Alaşımlı çelik: ASTM A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP7 / WP9 / WP91 Dubleks ve süper dubleks çelik: ASTM A815 UNS S31803 / S32750 / S32760 Özel alaşımlı çelik: Monel400 ve Inconel 600/800/825 / C276 Yürütme Standardı: ASME B 16.9, GB / T12459, DIN, JIS, BS, vb
Ürün tipi:	Dirsek (Uzun, Kısa), Dönüş (Uzun, Kısa), Tee, Çapraz, Cap, Redüktör ... vb.
Boyut (NPS):	Uzun Radius Dirsek, Düz Tee ve Çapraz, Kapak (1/2 ”ila 48”). Kısa Yarıçapı 180 derece Dönüş, Kısa Yarıçapı Dirsek (1 ”ila 24”). Uzun Yarıçap Dönüşü (1/2 "ila 24"). Uzun Radius Düşürücü Dirsek (2 ”x 1-1 / 2” - 24 ”x 12”). Çıkış Tee'nin Azaltılması ve Çıkış Çaprazının Azaltılması (1/2 ”x 1/2” x 3/8 ”ila 48” x 48 ”x 22”). Redüktör (3/4 "x 1/2" ila 48 "x 40").

Flanş tipi	WN / kaynak boyunlu flanş; SO / flanşta kayma; PL / Plaka flanşı; BL / Kör flanş; Th / Dişli flanş; SW / soket kaynak flanşı; LF / SE (alıştırma flanşı / saplama ucu); LWN / uzun kaynak boyunlu flanşı; Delikli flanş; azaltılması flanş; API flanş; İntegral / Kompakt flanş; Çizgi kürek ve ara parçası, Kürek kör, Kürek ayırıcı; Delikli plaka; Boru plakası, Tahliye halkası; Plaka flanşı
Standart	ANSI B16.5, ANSI B16.47, ANSI B16.48, ANSI B16.36, JIS B2220, BS4504, BS1560, BS10; MSS SP44 DIN2630, DIN2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2501 (TD); DN2573, DIN2576, DIN2527, DIN2655, DIN2656 (PL), DIN2566 (TH)
Boyut	1/2 '' ~ 60 ''
Sınıf Derecelendirmesi	~ 2500 150
karşı	RF (yükseltilmiş yüz); FF (düz yüz); RTJ (halka tipi eklem); RJ (halka eklem yüzü) TG (dil ve oluk yüzü); MFM (erkek ve kadın yüzü)
Üretim süreci	İtme, Basın, Takma, Dökme, vb.
Malzeme Karbon çelik Paslanmaz çelik Alaşımlı çelik Dubleks paslanmaz çelik	Karbon çeliği, paslanmaz çelik, alaşımlı çelik
	ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70; ASTM A234 WPB, WPC; ASTM A420 WPL6, WPL3; ASTM A105; ASTM A860; ASTM A350 LF1, LF2 CL1 / CL2, LF3 CL1 / CL2; ASTM A266 GR.1, GR.2, GR.3, GR.4 API 5L GR.B
	ASTM A182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316; 316Ti, 316L, 317, 317L, 321, 347,347H, 348,254SMO, S31254, UNS 8020, F45, S30815, F46, S30600, F904L A182 F56, S33228, F58, S31266, F62, N08367, ASTM A312
	ASTM A182 F5, F5a, F9, F11, F12, F22, F91;
	ASTM A182 F51 / UNS S31803, F53 / UNS S32750, F55 / UNS S32760
Paketleme	Tahta sandıklar, paletler, naylon torbalar veya müşterinin ihtiyacına göre
Adedi	1 parça
Teslimat süresi	Miktarına bağlı olarak 10-100 gün
Ödeme şartları	/ T
gönderi	FOB Şangay, CFR, CIF vb
Uygulama	Petrol / Güç / Kimya / İnşaat / Gaz / Metalurji / Gemi yapımı vb
Uyarılar	Diğer malzemeler ve çizimler mevcuttur.

Ürünler

Flanşlar

WN (kaynak boynu); SO (kayma); PL (Plaka); BL (Kör); TH (Dişli); SW (soket kaynağı); LF / SE (gömülmüş flanş / saplama ucu); LWN (uzun kaynak boyun); Delikli flanş; Flanş azaltılması; API flanşı; İntegral / Kompakt flanş; Gözlük körlüğü, Lind kürek ve ayırıcı, Kürek körlüğü, Kürek ayırıcı; Delikli plaka; Boru plakası, Boşaltma halkası.

standart

Amerikan standart

ANSIB16.5, B16.7, / API605,6A, 6B / MSS SP44 / AWWA C207

Almanca

standart

DIN2630,2631,2632,2633,2634,2635,2636,2637,2638,2501 (TD); DIN2573,2576,2527,2655,2656 (PL), DIN2566 (TH)

ingiliz

Standart

BS4504 PN16, PN40 / BS10

Japonya

Standart

JIS / KS5K, 10K, 16K, 20K

Rusya

Standart

GOST12820,12821

Çince

Standart

Olmayan-

standart

10mm-5000mm çekme boyutuna göre 0,5K ila 30 ton arası ağırlık

Boyut

1/2” -60”

Malzeme

Karbon çelik

ASTM A106 GR.B, GR.C, ASTM A333 GR.1, GR.3, GR.6;

ASTM / ASME S / A179 / A 179M;

ASTM / ASME S / A192 / A 192M;

API 5L GR.B, ASTM / ASME S / A210 / A 210M GR.A;

X42, X52, X60, X65;

ASTM A860 / A 860M WPHY42, WPHY52, WPHY60, WPHY65, WPHY70;

ASTM A694 / A 694M F42, F46, F48, F50, F52, F56, F60, F65, F70;

ASTM / ASME S / A234 / A 234M WPB, WPC;

ASTM / ASME S / A420 / A 420M WPL6, WPL3;

ASTM / ASME S / A105 / A 105M;

ASTM / ASME S / A266 / A 266M GR.1, GR.2, GR.3, GR.4;

ASTM / ASME S / A350 / A 350M LF1, LF2, LF3;

ASTM A193B7, A307B, A 320 L7;

Alaşımlı çelik

ASTM / ASMES / A335 / A315MP5, P9, P11,

P12, P22, P91;

ASTM / ASMES / A213A 213MT5, T9, T11,

T12, T22, T23T91;

DIN1717510CrMo910,13CrMo44,

10Cr9Mo1VNb; WB36 (15NiCuMoNb5);

ASTM / ASMES / A234 / A234MWP5, WP9,

WP11, WP12, WP22, WP9;

ASTM / ASMES / A182 / A182MF5, F5a,

F9, F11, F12, F22, F91;

ASTM / ASME S / A336 / A 336M F5,

F9, F11, F12, F22, F91.

Paslanmaz çelik

ASTM / ASMEA / SA182F304,304L,

304H, 309S, 309H, 310S, 310H,

316,316TI, 16H, 316, 316LN, 317,317L,

321,321H, 347,347H, 348,348H,

F40 / S31254, F20 / N08020, F45 / S30815,

F46 / S30600 F47 / S31725, F48 / S31726,

F49 / S34565, F56 / S33228, F58 / S31266,

F62 / N08367 / 1,4529

Dubleks Çelik / Süper Dubleks Çelik

ASTM / ASMEA / SA182F51 / 2205 / S31803 / 1.4462

; F53 / 2507 / S32750 / 1,4410;

F55 / S32760, F50 / S31200; F57 / S39277;

F59 / S32520; F60 / S32205;

F61 / S3225F904L / N08904 / 1.4539;

254SMO / S31254 / 1,4574; S31050 / 1,4466;

17-4PH / S1400 / 1.4548724L; 316Lmod / 1.4435;

725LN / 310MoLN

UNS S31254 / 254SMo / F44, S31200 / F50, S31803 / F51 / 2205,

S32950 / F52, S32750 / F53 / 2507,

S39274 / F54, S32760 / F55, S39277 / F57, S32520 / F59,

S32205 / F60, F62 / No8367, S32550 / F61 / 00cr25ni6.5mo3cun, S32906 / F65

TOBO GRUBU

TOBO uns s32750 süper çift yönlü paslanmaz çelik ayrıntılı açıklaması

TOBO uns s32750 süper çift yönlü paslanmaz çelik kimyasal bileşimi

Malzeme Kodu		Kütle yüzdesi (%)
Malzeme Kodu		C	Si	Mn	P	S	Cr	Ni	Mo	N-
2101 (S32101,1.4162)	ASTM	≤0.040	≤1.00	4,00-6,00	≤0.040	≤0.030	21,0-22,0	1,35-1,70	0,1-0,8	0,20-0,25
2101 (S32101,1.4162)	Tipik değer	0.028	0.071	5.03	0.028	0.001	21,5	1.55	0.3	0.22
2304 (S32304,1.462)	ASTM	≤0.030	≤1.00	≤2.50	≤0.040	≤0.030	21,5-24,5	3,0-5,5	0,05-0,60	0,05-0,20
2304 (S32304,1.462)	Tipik değer	0,026	0.5	1.28	0.028	0.001	23.5	4.05	0.3	0.12
2205 (S31803, S32205,1.4462)	ASTM a	≤0.030	≤1.00	≤2.00	≤0.030	≤0.020	21,0-23,0	4,5-6,5	2,5-3,5	0,08-0,20
	ASTM b	≤0.030	≤1.00	≤2.00	≤0.030	≤0.020	22,0-23,0	4,5-6,5	3,0-3,5	0,14-0,20
	Tipik değer	0.025	0,55	1.2	0.028	0.001	22.1	5.10	3.10	0.17
2507 (S32750,1.4410)	ASTM	≤0.030	≤1.00	≤1.20	≤0.035	≤0.020	24,0-26,0	6,0-8,0	3,0-5,0	0,24-0,32
2507 (S32750,1.4410)	Tipik değer	0,026	0,55	0,78	0.028	0.001	25,5	7.40	4.10	0.28

TOBO'nin mekanik özellikleri s32750 süper dubleks paslanmaz çelik

Malzeme Kodu		Rp0.2 / MPa	Rm / MPa	A /%	HB
2101 (S32101,1.4162)	ASTM	≥450	≥620	≥25	≤293
2101 (S32101,1.4162)	Tipik değer	530	720	33	240
2304 (S32304,1.4362)	ASTM	≥400	≥600	≥25	≤293
2304 (S32304,1.4362)	Tipik değer	520	710	35	245
2205 (S31803. S32205.1.4462)	astım	≥450	≥620	≥25	≤293
	ASTMb	≥450	≥655	≥25	255
	Tipik değer	550	750	33	≤293
2507 (S32750.1.4410)	ASTM	≥550	≥795	≥15	260
2507 (S32750.1.4410)	Tipik değer	580	850	31	≤310

TOBO uns s32750 süper dubleks paslanmaz çelik üretim süreci En iyi fiyat TISCO uns s32750 süper dubleks paslanmaz çelik

TOBO uns s32750 süper dubleks paslanmaz çelikten gelişmiş üretim ekipmanları En iyi fiyat TISCO uns s32750 süper dubleks paslanmaz çelik

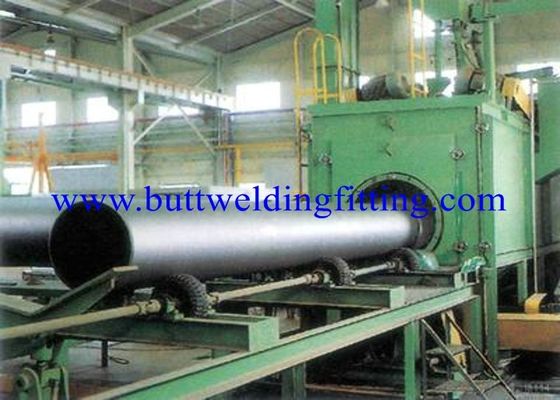

TOBO üretim Hattı uns s32750 süper dubleks paslanmaz çelik En iyi fiyat TISCO uns s32750 süper dubleks paslanmaz çelik

TOBO uns s32750 super duplex paslanmaz çelik'in Ar - Ge yetenekleri

Verim dayanımı 18-8 tipi paslanmaz çeliğin iki katı olduğundan yüksek dayanıma sahiptir. İyi çukur korozyon direnci ve gerilme korozyonu direnci, kaynak ısı çatlağının küçük eğilimi, büyük iletkenlik ve küçük doğrusal genleşme katsayısı üretimi uygundur. hat os tesisleri, ısı değişim tüpü ve kaplı levha üretmek. Ayrıca, yıpranma sertliği, yüksek enerji emilimi ve shck direncine sahiptir.

Kaynak kabiliyeti TOBO uns s32750 süper dubleks paslanmaz çelik

1 Kaynak ön ısıtması yok

2Weldinterpass sıcaklığı 150 daha düşük, 2507 daha düşük 100 için sıcaklık

3plex paslanmaz çelik için özel kaynak malzemesi gereklidir

4 Isı çıkışı, çift taraflı paslanmaz çeliklerin bileşimine ve kalınlığına göre değişir.

TOBO çelik grubu, kapsamlı bir fiting yelpazesi sunmaktadır.

PTCL boru aralığına uygun malzemelerdeki flanşlar ve yardımcı ürünler ayrıntılı olarak belirtilmiştir.

Stok, fabrika çıkışı veya özel üretim teslimat bazında mevcuttur.

Eddy akımı testi

Doğrudan okuma spektrometresi

Ultrasonik dedektör

hidrolik test cihazları

Kimya laboratuvarı

Üniversal test makinesi

Sertlik ölçme aleti

Metalografi mikroskobu ithal

Mikro-analiz

Kimyasal analiz

Her zaman mükemmellik arayışı, hayatta kalma tabanımızdır. Modern girişim "İnsan merkezli kavram" izlemektedir. Personelin kalitesini yükseltmekle başlıyoruz ve kalite bilincine ulaşmak için birinci sınıf kaliteyi sağlamak için potansiyel yetenek kullanmamıza izin vermeye çalışıyoruz. Mükemmellik, ayrıntılara kalıcıdır, mükemmellik, teknolojiye meydan okumak, mükemmellik, önsözü anlamak, mükemmellik, nitelikleri nitelemek, mükemmellik, fanatizm en üst seviyeye çıkarmaktır.

Tel kesme makinası

Yansıtmalı okuma spektrometresi

Darbe test cihazı
