| Menşe yeri: | Çin |
|---|---|
| Marka adı: | TOBO |
| Sertifika: | SO9001, API,CE |
| Model numarası: | ASTM / ASME A860 WPHY 42-46-52-60-65-70 |
| Min sipariş miktarı: | 1pcs |
| Fiyat: | Anlaşılabilir |
| Ambalaj bilgileri: | Ahşap kutu veya ahşap palet |
| Teslim süresi: | 15 gün |
| Ödeme koşulları: | T / T, Western Union, MoneyGram, D / P, D / A, L / C |
| Yetenek temini: | 960000000 Adet aylık |
| Standart: | ANSI B16.9, ANSI B16.28, DIN 2605, ISO3419, DIN EN10253, JIS B2312, JIS B2313, MSS SP-25, MSS SP-75, | Boru bağlantı parçaları tipi: | Eksantrik Redüktör Konsantrik Redüktör |
|---|---|---|---|
| Malzeme: | ASTM / ASME A860 WPHY 42-46-52-60-65-70 | Kalınlığı: | Sch5-Sch160, STD, XS, XXS |
| Vurgulamak: | Boru Redüktör Parçaları,Eşmerkezli Boru Redüktörü |
||
Form:
1/8 "NB ila 48" NB. (Dikişsiz ve Kaynaklı)
Kalınlık
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS ve NS NACE ile mevcut
MR 01-75
Tür:
· 45 °, 90 °, 180 °, R = 1D, 1.5D, 3D, 5D, 6D, 8D, 10D ve 20D'de dirsekler.
· Eksantrik ve konsantrik redüktör.
· Caps ve haçlar.
· Eşit ve eşitsiz tee.
· Uzun ve kısa saplama ucu.
Standart:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011;
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Malzeme:
Paslanmaz Çelik: ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321/310/347 / 904L / vb.
Karbon Çelik: ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42/46/52/56/60/65/70 vb.
Alaşımlı Çelik: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 / vs.
Diğer malzemeler: Monel, Nikel, İnkonel, Hastalloy, Bakır, Pirinç, Bronz, Titanyum, Tantal, Bizmut,
Alüminyum, Yüksek Hız Çeliği, Çinko, Kurşun vb.
Nominal çap | Dış çap | Uçtan uca | ||
D1 * D2 | ||||
DN | NPS | Seri A | B Serisi | 'H |
20 x 15 | 3/4 x 1/2 | 26.9 x 21.3 | 25 x 18 | 38 |
20 x 10 | 3/4 x 3/8 | 26.9 x 17.3 | 25 x 14 | 38 |
25 x 20 | 1 x 3/4 | 33.7 x 26.9 | 32 x 25 | 51 |
25 x 15 | 1 x 1/2 | 33.7 x 21.3 | 32 x 18 | 51 |
32 x 25 | 1.1 / 4 x 1 | 42.4 x 33.7 | 38 x 32 | 51 |
32 x 20 | 1.1 / 4 x 3/4 | 42.4 x 26.9 | 38 x 25 | 51 |
32 x 15 | 1.1 / 4 x 1/2 | 42.4 x 21.3 | 38 x 18 | 51 |
40 x 32 | 1.1 / 2 x 1.1 / 4 | 48.3 x 42.4 | 45 x 38 | 64 |
40 x 25 | 1.1 / 2 x 1 | 48.3 x 33.7 | 45 x 32 | 64 |
40 x 20 | 1.1 / 2 x 3/4 | 48.3 x 26.9 | 45 x 25 | 64 |
40 x 15 | 1.1 / 2 x 1/2 | 48.3 x 21.3 | 45 x 18 | 64 |
50 x 40 | 2 x 1.1 / 2 | 60.3 × 48.3 | 57 x 45 | 76 |
50 x 32 | 2 x 1.1 / 4 | 60.3 × 42.4 | 57 x 38 | 76 |
50 x 25 | 2 x 1 | 60.3 × 33.7 | 57 x 32 | 76 |
50 x 20 | 2 x 3/4 | 60.3 x 26.9 | 57 x 25 | 76 |
65 x 50 | 2.1 / 2 x 2 | 73.0 × 60.3 | 76 x 57 | 89 |
65 x 40 | 2.1 / 2 x 1.1 / 2 | 73.0 x 48.3 | 76 x 45 | 89 |
65 x 32 | 2.1 / 2 x 1.1 / 4 | 73.0 x 42.4 | 76 x 38 | 89 |
65 x 25 | 2.1 / 2 x 1 | 73.0 x 33.7 | 76 x 32 | 89 |
80 x 65 | 3 x 2.1 / 2 | 88.9 x 73.0 | 89 x 76 | 89 |
80 x 50 | 3 × 2 | 88.9 × 60.3 | 89 x 57 | 89 |
80 x 40 | 3 x 1.1 / 2 | 88.9 x 48.3 | 89 x 45 | 89 |
80 x 32 | 3 x 1.1 / 4 | 88.9 x 42.4 | 89 x 38 | 89 |
90 x 80 | 3,1 / 2 x 3 | 101.6 x 88.9 | - | 102 |
90 x 65 | 3,1 / 2 x 2.1 / 2 | 101.6 x 73.0 | - | 102 |
90 x 50 | 3,1 / 2 x 2 | 101.6 × 60.3 | - | 102 |
90 x 40 | 3,1 / 2 x 1.1 / 2 | 101.6 x 48.3 | - | 102 |
90 x 32 | 3,1 / 2 x 1.1 / 4 | 101.6 x 42.4 | - | 102 |
100 x 90 | 4 x 3.1 / 2 | 114.3 x 101.6 | - | 102 |
100 x 80 | 4 x 3 | 114.3 x 88.9 | 108 x 89 | 102 |
100 x 65 | 4 x 2.1 / 2 | 114.3 x 73.0 | 108 x 76 | 102 |
100 x 50 | 4 x 2 | 114.3 × 60.3 | 108 x 57 | 102 |
100 x 40 | 4 x 1.1 / 2 | 114.3 x 48.3 | 108 x 45 | 102 |
125 x 100 | 5 x 4 | 141.3 x 114.3 | 133 x 108 | 127 |
125 x 90 | 5 x 3.1 / 2 | 141.3 x 101.6 | - | 127 |
125 x 80 | 5 x 3 | 141.3 x 88.9 | 133 x 89 | 127 |
125 x 65 | 5 x 2,1 / 2 | 141.3 x 73.0 | 133 x 76 | 127 |
125 x 50 | 5 x 2 | 141.3 × 60.3 | 133 × 57 | 127 |
150 x 125 | 6 x 5 | 168.3 x 141.3 | 159 × 133 | 140 |
150 x 100 | 6 x 5 | 168.3 x 114.3 | 159 x 108 | 140 |
150 x 90 | 6 x 3,1 / 2 | 168.3 x 101.6 | - | 140 |
150 x 80 | 6 x 3 | 168.3 x 88.9 | 159 x 89 | 140 |
150 x 65 | 6 x 2,1 / 2 | 168.3 x 73.0 | 159 x 76 | 140 |
200 x 150 | 8 x 6 | 219.1 x 168.3 | 219 x 159 | 152 |
200 x 125 | 8 x 5 | 219.1 x 141.3 | 219 x 133 | 152 |
200 x 100 | 8 x 4 | 219.1 x 114.3 | 219 x 108 | 152 |
200 x 90 | 8 x 3.1 / 2 | 219.1 x 101.6 | - | 152 |
250 x 200 | 10 x 8 | 273.0 x 219.1 | 273 x 219 | 178 |
250 x 150 | 10 x 6 | 273.0 x 168.3 | 273 x 159 | 178 |
250 x 125 | 10 x 5 | 273.0 x 141.3 | 273 × 133 | 178 |
250 x 100 | 10 x 4 | 273.0 x 114.3 | 273 x 108 | 178 |
300 x 250 | 12 x 10 | 323.9 x 273.1 | 325 x 273 | 203 |
300 x 200 | 12 x 8 | 323.9 x 219.1 | 325 x 219 | 203 |
300 x 150 | 12 x 6 | 323.9 x 168.3 | 325 x 159 | 203 |
300 x 125 | 12 x 5 | 323.9 x 141.3 | 325 x 133 | 203 |
350 x 300 | 14 x 12 | 355.6 x 323.9 | 377 x 325 | 330 |
350 x 250 | 14 x 10 | 355.6 x 273.0 | 377 x 273 | 330 |
350 x 200 | 14 x 8 | 355.6 x 219.1 | 377 x 219 | 330 |
350 x 150 | 14 x 6 | 355.6 x 168.3 | 377 x 159 | 330 |
400 x 350 | 16 x 14 | 406.4 x 355.6 | 426 x 377 | 356 |
400 x 300 | 16 x 12 | 406.4 x 323.9 | 426 x 325 | 356 |
400 x 250 | 16 x 10 | 406.4 x 273.0 | 426 x 273 | 356 |
400 x 200 | 16 x 8 | 406.4 x 219.1 | 426 x 219 | 356 |
450 x 400 | 18 x 16 | 457 x 406.4 | 478 x 426 | 381 |
450 x 350 | 18 x 14 | 457 x 355.6 | 478 x 377 | 381 |
450 x 300 | 18 x 12 | 457 x 323.9 | 478 x 325 | 381 |
450 x 250 | 18 x 10 | 457 x 273,0 | 478 x 273 | 381 |
500 x 450 | 20 x 18 | 508 x 457 | 529 x 478 | 508 |
500 x 400 | 20 x 16 | 508 x 406.4 | 529 x 426 | 508 |
500 x 350 | 20 x 14 | 508 x 355.6 | 529 x 377 | 508 |
500 x 300 | 20 x 12 | 508 x 323.9 | 529 x 325 | 508 |
550 x 500 | 22 x 20 | 559 x 508 | - | 508 |
550 x 450 | 22 x 18 | 559 x 457 | - | 508 |
550 x 400 | 22 x 16 | 559 x 406.4 | - | 508 |
550 x 350 | 22 x 14 | 559 x 355.6 | - | 508 |
600 x 550 | 24 x 22 | 610 x 559 | - | 508 |
600 x 500 | 24 x 20 | 610 x 508 | 630 x 529 | 508 |
600 x 450 | 24 x 18 | 610 x 457 | 630 x 478 | 508 |
600 x 400 | 24 x 22 | 610 x 406.4 | 630 x 426 | 508 |
650 x 600 | 26 x 24 | 660 x 610 | - | 610 |
650 x 550 | 26 x 22 | 660 x 559 | - | 610 |
650 x 500 | 26 x 20 | 660 x 508 | - | 610 |
650 x 450 | 26 x 18 | 660 x 457 | - | 610 |
700 x 650 | 28 x 26 | 711 x 660 | - | 610 |
700 x 600 | 28 x 24 | 711 x 610 | 720 x 630 | 610 |
700 x 550 | 28 x 22 | 711 x 559 | - | 610 |
700 x 500 | 28 x 20 | 711 x 508 | 720 x 530 | 610 |
750 x 700 | 30 x 28 | 762 x 711 | - | 610 |
750 x 650 | 30 x 26 | 762 x 660 | - | 610 |
750 x 600 | 30 x 24 | 762 x 610 | - | 610 |
750 x 550 | 30 x 22 | 762 x 559 | - | 610 |
800 x 750 | 32 x 30 | 813 x 762 | - | 610 |
800 × 700 | 32 x 28 | 813 x 711 | 820 x 720 | 610 |
800 x 650 | 32 x 26 | 813 x 660 | - | 610 |
800 x 600 | 32 x 24 | 813 x 610 | 820 x 630 | 610 |
850 x 800 | 34 x 32 | 864 x 813 | - | 610 |
850 x 750 | 34 x 30 | 864 x 762 | - | 610 |
850 x 700 | 34 x 28 | 864 x 711 | - | 610 |
850 x 650 | 34 x 26 | 864 x 660 | - | 610 |
900 x 850 | 36 x 34 | 914 x 864 | - | 610 |
900 × 800 | 36 x 32 | 914 x 813 | 920 x 820 | 610 |
900 x 750 | 36 x 30 | 914 x 762 | - | 610 |
900 x 700 | 36 x 28 | 914 x 711 | 920 x 720 | 610 |
950 x 900 | 38 x 36 | 965 x 914 | - | 610 |
950 x 850 | 38 x 34 | 965 x 864 | - | 610 |
950 × 800 | 38 x 32 | 965 x 813 | - | 610 |
950 x 750 | 38 x 30 | 965 x 762 | - | 610 |
1000 x 950 | 40 x 38 | 1016 x 965 | - | 610 |
1000 x 900 | 40 x 36 | 1016 x 914 | 1020 x 920 | 610 |
1000 x 850 | 40 x 34 | 1016 x 864 | - | 610 |
1000 x 800 | 40 x 32 | 1016 x 813 | 1020 x 820 | 610 |
1050 1000 × | 42 x 40 | 1067 x 1016 | - | 610 |
1050 x 950 | 42 x 38 | 1067 x 965 | - | 610 |
1050 x 900 | 42 x 36 | 1067 x 914 | - | 610 |
1050 x 850 | 42 x 34 | 1067 x 864 | - | 610 |
1100 × 1050 | 44 x 42 | 1118 x 1067 | - | 610 |
1100 1000 × | 44 x 40 | 1118 x 1016 | 1120 × 1020 | 610 |
1100 x 950 | 44 x 38 | 1118 x 965 | - | 610 |
1100 x 900 | 44 x 36 | 1118 x 914 | 1220 x 920 | 610 |
1150 x 1100 | 46 x 44 | 1168 x 1118 | - | 711 |
1150 × 1050 | 46 x 42 | 1168 x 1067 | - | 711 |
1150 1000 × | 46 x 40 | 1168 x 1016 | - | 711 |
1150 x 950 | 46 x 38 | 1168 x 965 | - | 711 |
Çok 1200 x 1150 | 48 x 46 | 1220 x 1168 | - | 711 |
Çok 1200 x 1100 | 48 x 44 | 1220 x 1118 | 1220 × 1120 | 711 |
Çok 1200 x 1050 | 48 x 42 | 1220 x 1067 | - | 711 |
Çok 1200 x 1000 | 48 x 40 | 1220 x 1016 | 1220 x 1020 | 711 |
Not: HG / T21635, HG / T21631, SY / T0501 0 standardı. | ||||

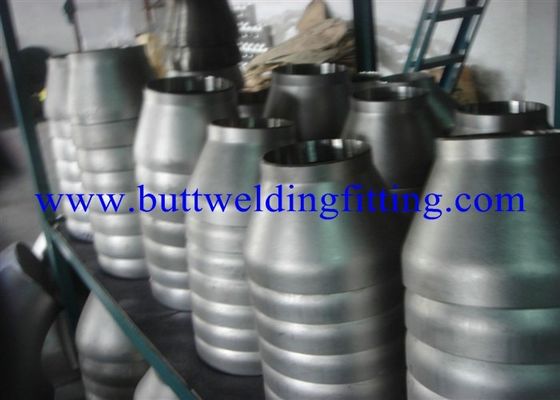

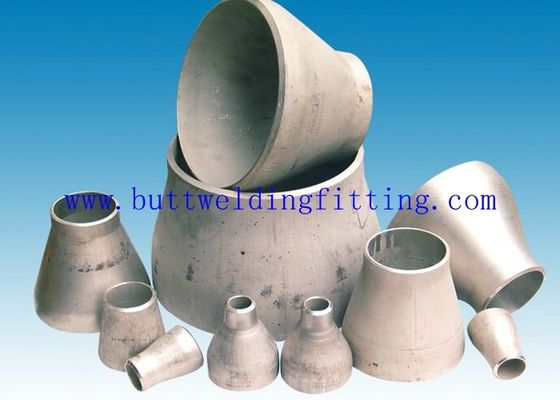

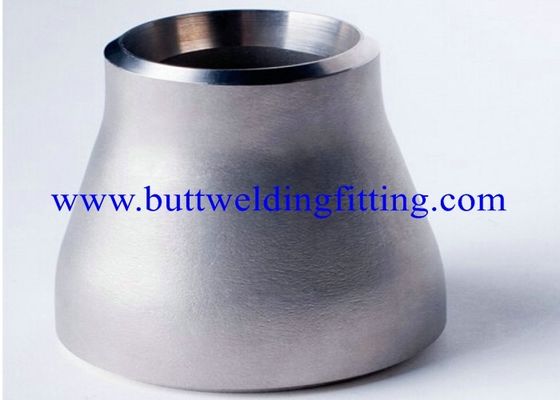

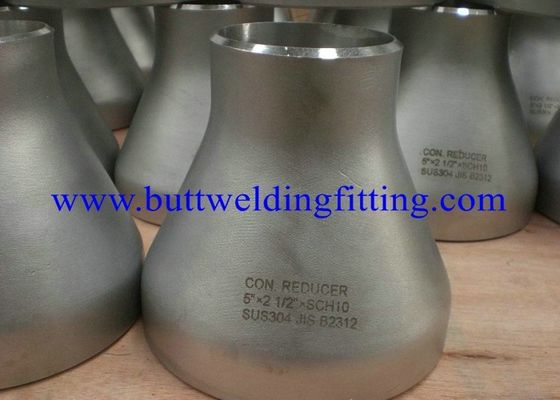

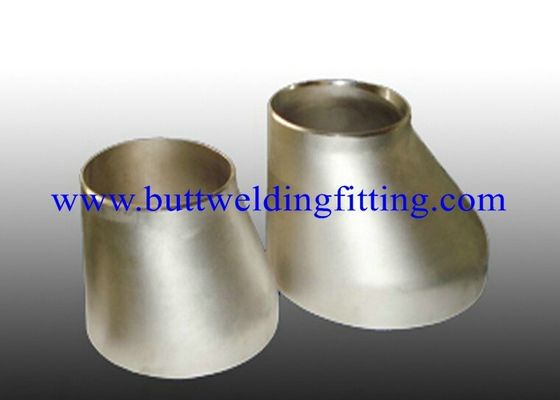

ASTM / ASME A860 Paslanmaz Çelik Redüktör / Eksantrik Eşmerkezli Redüktör
Form:
1/8 "NB ila 48" NB. (Dikişsiz ve Kaynaklı)
Kalınlık
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS ve NS NACE ile mevcut
MR 01-75
Tür:
· 45 °, 90 °, 180 °, R = 1D, 1.5D, 3D, 5D, 6D, 8D, 10D ve 20D'de dirsekler.
· Eksantrik ve konsantrik redüktör.
· Caps ve haçlar.
· Eşit ve eşitsiz tee.
· Uzun ve kısa saplama ucu.
Standart:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011;
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Malzeme:
Paslanmaz Çelik: ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321/310/347 / 904L / vb.
Karbon Çelik: ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42/46/52/56/60/65/70 vb.
Alaşımlı Çelik: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 / vs.
Diğer malzemeler: Monel, Nikel, İnkonel, Hastalloy, Bakır, Pirinç, Bronz, Titanyum, Tantal, Bizmut,
Alüminyum, Yüksek Hız Çeliği, Çinko, Kurşun vb.
Form:
1/8 "NB ila 48" NB. (Dikişsiz ve Kaynaklı)
Kalınlık
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS ve NS NACE ile mevcut
MR 01-75
Tür:
· 45 °, 90 °, 180 °, R = 1D, 1.5D, 3D, 5D, 6D, 8D, 10D ve 20D'de dirsekler.
· Eksantrik ve konsantrik redüktör.
· Caps ve haçlar.
· Eşit ve eşitsiz tee.
· Uzun ve kısa saplama ucu.
Standart:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011;
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Malzeme:
Paslanmaz Çelik: ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321/310/347 / 904L / vb.
Karbon Çelik: ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42/46/52/56/60/65/70 vb.
Alaşımlı Çelik: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 / vs.
Diğer malzemeler: Monel, Nikel, İnkonel, Hastalloy, Bakır, Pirinç, Bronz, Titanyum, Tantal, Bizmut,
Alüminyum, Yüksek Hız Çeliği, Çinko, Kurşun vb.
