ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting

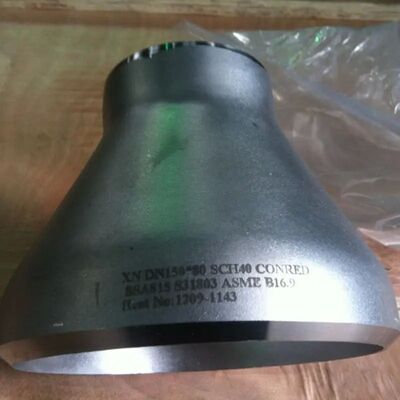

  • ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting

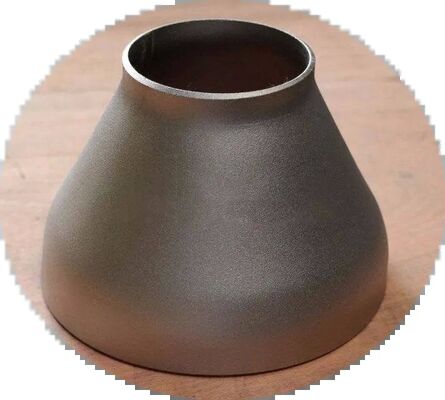

  • ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting

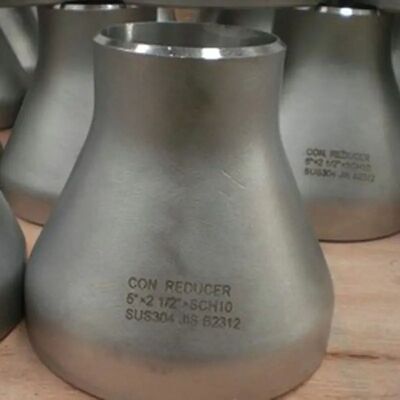

  • ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting

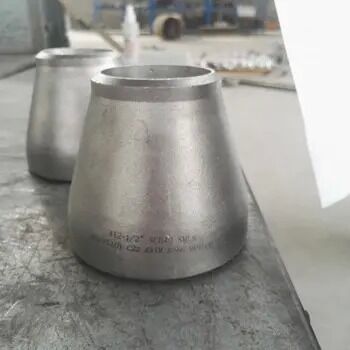

  • ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting
  • ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting
Menşe yeri Şangay, Çin
Marka adı TOBO
Sertifika ISO/TUV/SGS
Model numarası Paslanmaz Çelik Redüktör
Min sipariş miktarı 1 adet
Fiyat Anlaşılabilir
Ambalaj bilgileri Standart nakliye paketi
Teslim süresi 15-30 iş günü
Ödeme koşulları Banka havalesi, Western Union
Yetenek temini 10 ton/ay
Ürün ayrıntıları
Ürün adı Paslanmaz Çelik Altıgen Alın Kaynak Redüktör ANSI B16.9 Sch 40 Sınıf 150 Bağlantı Elemanı Malzeme Sınıfı 904L
Bağlantı türü Kadın x erkek Yüzey bitirme Cilalı / Turşu / Pasifleştirilmiş
Sona ermek Cilalı Diğer Ad Paslanmaz Çelik Boru Ek Parçaları
Ödeme T/T, L/C, Western Union, Para Gramı Bağlantı Alın Kaynağı, Soket Kaynağı, Dişli
Çelik Sınıfı S31803(2205) S32205 S32760 S32750 İç Çap 1/2
Boyut Özelleştirilmiş Basınç Değeri 150 PSI
OEM / DOM Destekleniyor Ürün adı Paslanmaz Çelik Redüktör
Paket Karton, Palet vb. Şekil Eşmerkezli / Eksantrik
Vurgulamak

ANSI B16.9 Stainless Steel Reducer

,

Sch 40 Butt Weld Reducer

,

Class 150 Pipe Fitting
Mesaj bırakın
Ürün Açıklaması

Stainless Steel Hexagonal Butt Weld Reducer ANSI B16.9 Sch 40 Class 150 Fitting


1. Product Description



Stainless Steel Reducer is a durable pipe fitting designed for smooth diameter transitions between pipes of different sizes. Available in Concentric (center‑aligned) and Eccentric (flat‑side offset) styles, it ensures stable flow, low turbulence, and reliable performance across a wide range of industrial applications.


2. Product Applications

  • Oil & gas pipelines and refineries

  • Chemical and petrochemical plants

  • Water supply and wastewater treatment

  • Power generation (thermal, nuclear, renewable)

  • Food and beverage processing

  • Marine engineering and shipbuilding

  • HVAC and industrial refrigeration

  • Pulp, paper and textile mills

  • Metallurgy and mining

​

​3.Product Advantages

  • Excellent corrosion and rust resistance – suitable for harsh, humid, or chemical environments.

  • High mechanical strength with outstanding pressure and wear resistance.

  • Precision manufacturing ensures accurate dimensions and leak‑free welded connections.

  • Integrated forming technology reduces weld defects and extends service life.

  • Low maintenance – waterproof, rust‑proof, and long‑lasting.

  • Optimised internal profile keeps pressure loss below 5% across a wide temperature range.

  • Fully customisable – materials, wall thicknesses, surface finishes, and special sizes available.

​ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting 0​

4.Key Product Parameters



Parameter Specification
Material Grades 304, 304L, 316, 316L, 317L, 321, 310S, 347, 904L, Duplex 2205, Super Duplex 2507
Size Range – Seamless 1/2" – 20" (DN15 – DN500)
Size Range – Welded 1/2" – 48" (DN15 – DN1200)
Wall Thickness SCH 5S, 10S, 20S, 40S, 80S, STD, XS, XXS (1.0 – 30 mm)
Reducer Type Concentric, Eccentric
End Connection Butt-weld (BW, beveled), Socket-weld (SW, square cut)
Manufacturing Standards ASME B16.9, B16.28, MSS SP-43, DIN 2616, JIS B2313, GB/T12459, GB/T13401
Tensile Strength (min.) ≥515 MPa (316/316L); ≥620 MPa (Duplex)
Surface Finish Pickled & passivated, polished, sandblasted, electro-polished
Service Temperature -20°C to 400°C (standard); up to 650°C for high-temp grades
Pressure Loss (typical) <5% of inlet pressure under normal flow conditions
Dimensional Tolerances OD: ±1.5 mm, wall thickness: ±10% ~ 12.5% (per standard)


FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
